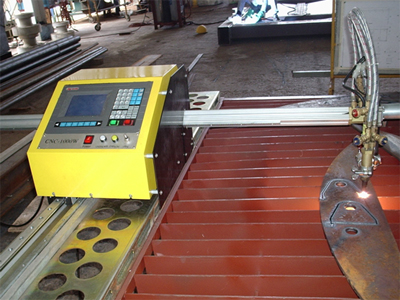

Portable CNC cutting machine, Model: CNC-1200W
Description:
  1. Cutting Shape: any flat shapes of steel plate parts composed of programmable cutting straight- lines and arcs.
  2. Cutting Precision: national standard JB/T10045.3-99
  3. Mounting Means: block mount, movable, without occupying fixed field.
  4. Cutting Width: effective cutting width ~1200mm
  5. Length of Rail: effective cutting length ~2000mm
  6. Torch: one flame-cutting torch
  7. Cutting Thickness: flame cutting 6~150mm
  8. CNC System: Beijing START (USA sole investment)
  9. Amplifier: Beijing START (USA sole investment)
  10. Drive motor: step motor (Beijing START)
  11. Performance Specification:
    1. Display screen: 5.7 liquid crystal display.
    2. Keyboard: thin-film keys.
    3. USB interface, U-disk file transfer available.
    4. 2-axis straight-line and circular interpolation.
    5. 60 programs and files can be stored.
    6. Support pause, advance, back and speed regulation in the process.
  12. CNC Programming: full automatic figure programming software APNS based on AutoCAD.
  13. Cutting Gas: oxygen + acetylene or propane.
  14. Range of Speed Control: flame cutting 0~1000mm/min
  15. Rapid speed: 3000mm/min
